Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XZ-axis

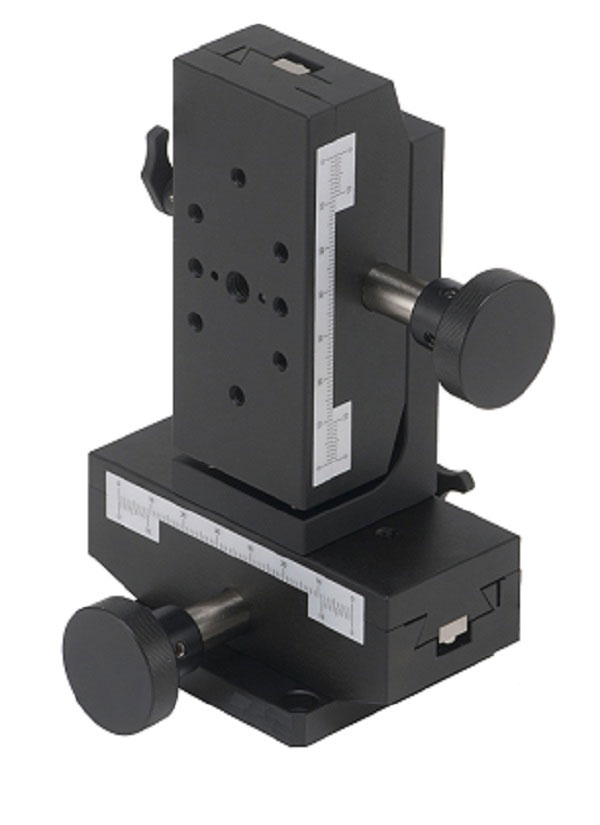

Manual Linear Positioning Stage Picture


MCM-49WL manual, dovetail, rack and pinion, X+Z-axis stages provide precise and accurate micrometer driven XZ-axis adjustment of a top platform.

These manual X+Z-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 90 mm and have a body weight of 0.89.

The stroke is X: +/-10 and Z: 30 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

  Unit: mm
Part No.. Table
Size
Axis Movement accuracy
straightness
Weight
(kg)
Material Surface
finish
Travel Distance Knob No Minimum reading
indicator

 MCM-49WL

40 mm by 90 mm X+Z axis 30 micron 0.89 Aluminum Alloy Black anodized X: +/-10
Z: 30
Dual 0.1mm/indicator

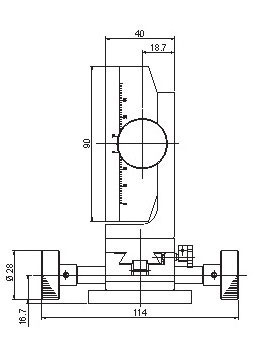

Manual Linear Positioning Stage Mechanical Drawing
MCM 49WL

 Ordering Information

Part No. Description Amount
MCM-49WL Manual Stage, Dovetail Stage, Rack and Pinion XZ-axis, Range of Travel X: +/-30 mm, Z: 30 mm Click to Get a Quote
