Manual Linear Positioning Stage

Manual Stages > Dovetail Stages > Rack and Pinion Z-axis

Manual Linear Positioning Stage Picture


MCV-49W manual, dovetail, rack and pinion, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 90 mm and have a body weight of 0.5.

The Load Capacity is 2 kg.

The stroke is +/- 30 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Part No.. Table
Size
Axis Movement accuracy
straightness
Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Knob No Minimum reading
indicator

 MCV-49

40 mm by 90 mm Z axis 30 micron 2 0.47 Aluminum Alloy Black anodized +/-30 Single 0.1mm/indicator

 MCV-49W

0.5 Dual

 MCV-41

40 mm by 140 mm 0.67 +/-50 Single

 MCV-41W

0.7 Dual

Mechanical Drawing

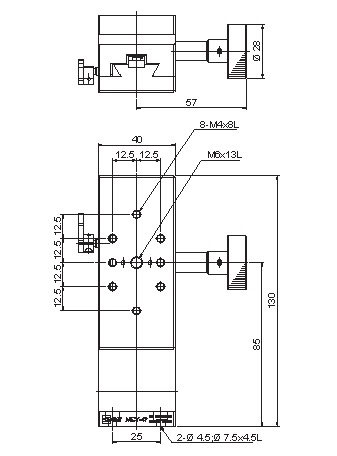

Manual Linear Positioning Stage Mechanical Drawing
MCV 49

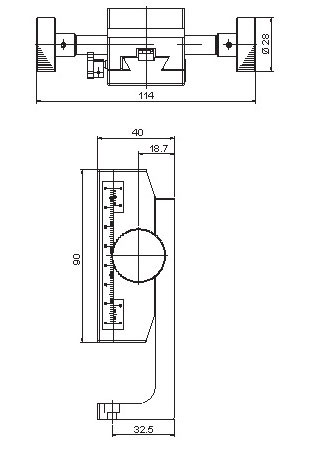

Manual Linear Positioning Stage Mechanical Drawing
MCV 49W

Manual Linear Positioning Stage Mechanical Drawing
MCV 41

Manual Linear Positioning Stage Mechanical Drawing
MCV 41W

 Ordering Information

Part No. Description Amount
MCV-49 Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-30 mm Click to Get a Quote
MCV-49W Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-30 mm Click to Get a Quote
MCV-41 Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-50 mm Click to Get a Quote
MCV-41W Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-50 mm Click to Get a Quote
