Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Stainless Steel Z-axis Stages

Manual Linear Positioning Stage Picture


This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 60 X 60 mm has a body weight of 0.88 kgf.

The maximum load of this linear table is 5.0 kgf.

The distance of travel is +/- 6.5 mm.

The movement accuracy straightness are straightness:3 Ám, vertical yawing: 25 and parallel yawing: 15.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Micrometer
minimum reading
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Movement accuracy
Straightness Vertical yawing Parallel yawing

 MZL60-SCR

60 by 60 10 μm 5.0 0.88 stainless steel 440C Electroless
Nickel plating
+/-6.5 3 μm 25 15

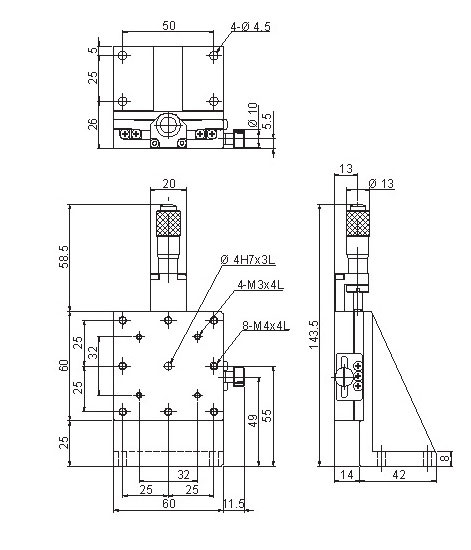

Manual Linear Positioning Stage Mechanical Drawing
MZL60-SCR

 Ordering Information

Part No. Description Amount
MZL60-SCR Stainless Steel Linear Ball Bearing Stage Z-Axis: 60x60mm Travel Size: 13mm Precision: 0.01mm Click to Get a Quote
