Manual Linear Positioning Stage

Home > Manual Stages > Simplified Stage > Miniature Simplified XY-Axis Stages

Manual Linear Positioning Stage Mechanical Drawing

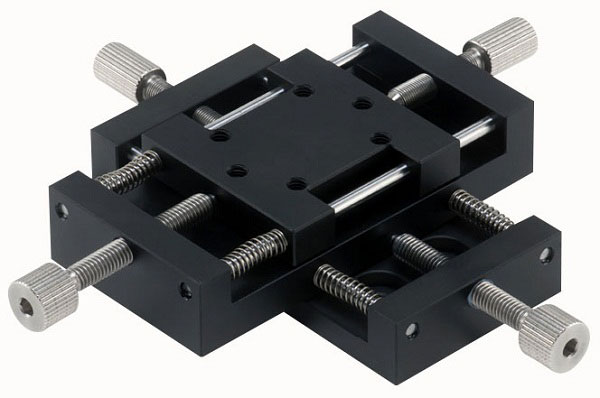

This manual crossed roller vertical positioning is made of aluminum alloy with an black anodized coating.

The bench size is 40 X 40 mm has a body weight of 0.202 kg.

The maximum load of this linear table is 1.5 kg.

The stroke is +/- 7.5 mm.

The minimum reading is 0.5 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Travel Distance Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MNG2E-40CL
40 by 40 XY-axis +/- 7.5 1.5 0.202 Aluminum Alloy Black anodized 0.5 mm

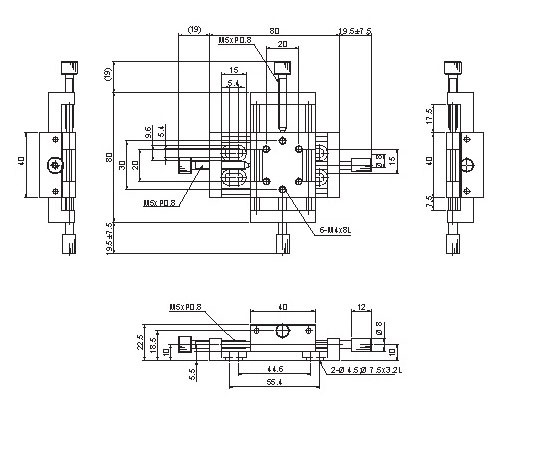

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MNG2E-40CL	Manual Stage, Simplified Stage, Miniature Simplified XY-Axis Stage, Range of Travel +/- 7.5 mm	Click to Get a Quote
