Manual Linear Positioning Stage

Home > Manual Stages > Crossed Roller Stages > Vertical Stages

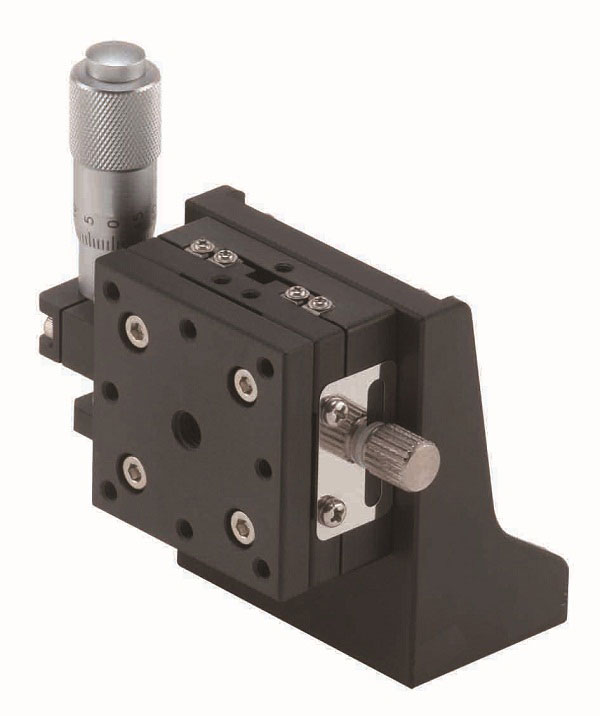

Manual Linear Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 40 X 40 mm has a body weight of 1.5 kgf.

It provides side type of feed position.

The maximum load of this super thin table is 3um kgf.

The distance of travel is +/- 6.5 mm.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Table
Size
Axis Feed
Position
Travel Distance Micrometer
minimum reading
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish

 MLZ40-ASZ

40 by 40 X+L Bracket Side +/-6.5 10 μm 3 μm 1.5 Aluminum Alloy Black anodized

Mechanical Drawing

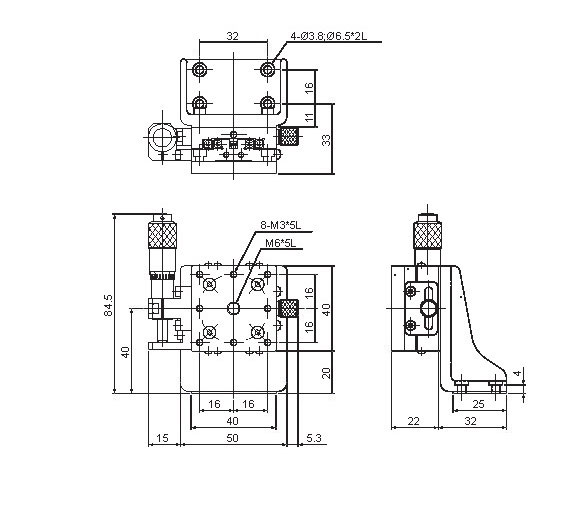

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MLZ40-ASZ Crossed Roller Mini Auminum Thin Type Stage Z Axis 40x40mm Table with 13mm Travel Click to Get a Quote
