Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XY-axis

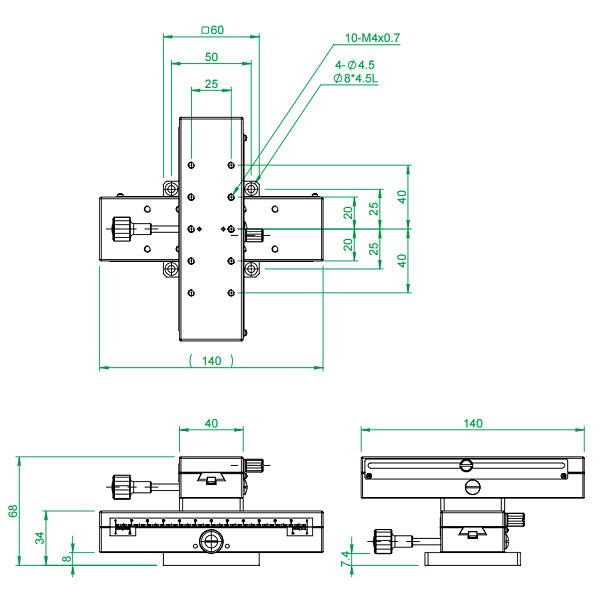

Manual Linear Positioning Stage Picture

MC2B-140 manual, dovetail, rack and pinion, XY-axis stages provide precise and accurate micrometer driven XY-axis adjustment of a top platform.

These manual XY-axis dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 by 140 mm and have a body weight of 1.08.

The maximum load of these feed screw tables is 3.5 kgf.

The stroke is +/- 60 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Minimum reading
indicator

 MC2B-140

40 by 140 30 μm 2.5 1.08 Aluminum Alloy Black anodized +/-60 0.1mm / indicator


MC2B-140

 Ordering Information

Part No. Description Amount
MC2B-140 Manual Stage, Dovetail Stage, Rack and Pinion XY-axis, Range of Travel +/-60 mm Click to Get a Quote
