Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XYZ-axis

Manual Linear Positioning Stage Picture


MC6D-2550 manual, dovetail, feeding screw, XYZ-axis stages provide precise and accurate micrometer driven XYZ-axis adjustment of a top platform.

These manual XYZ-axis dovetail rack and pinion is made of brass alloy with an elegant black anodized coating.

The table sizes are 25 X 50 mm and have a body weight of 0.52.

The maximum load of these feed screw tables is 1 kgf.

The distance of travel is +/- 10 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Minimum reading
indicator

 MC6D-2550

25 by 50 X+Z axis 30 μm 8 0.52 Brass alloy Black fluororesin finished +/- 10 0.1mm/indicator

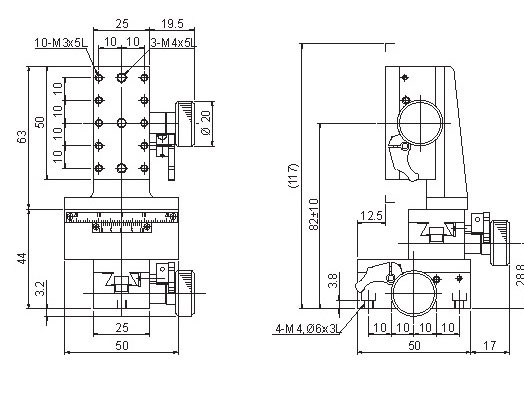

Manual Linear Positioning Stage Mechanical Drawing
MC6D-2550

 Ordering Information

Part No. Description Amount
MC6D-2550 Manual Stage, Dovetail Stage, Rack and Pinion XYZ-axis, Range of Travel +/-10 Click to Get a Quote
