Manual Alpha-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-axis Goniometer Stages

Manual Alpha-axis Goniometer Stage Picture

MXG4-25CS, alpha-axis manual goniometers are made of brass alloy with an elegant black fluororesin coating.

The bench size is 40 X 40 mm has a body weight of 0.18 kgf.
The drive mechanism is worm and worm gear. The worm gear ratios are
2.2, per revolution of knob.
They provide +/- 20 degrees of rotation.

The maximum load of this goniometer table is 3.0 kgf.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 25 mm.

Specifications
  Unit: mm
Model No. Table
Size
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator
Height of
rotational center

 MXG4-25CS

40 by 40 3.0 0.18 Brass alloy Black Fluororesin +/- 20 ≈2.2 1/indicator 25

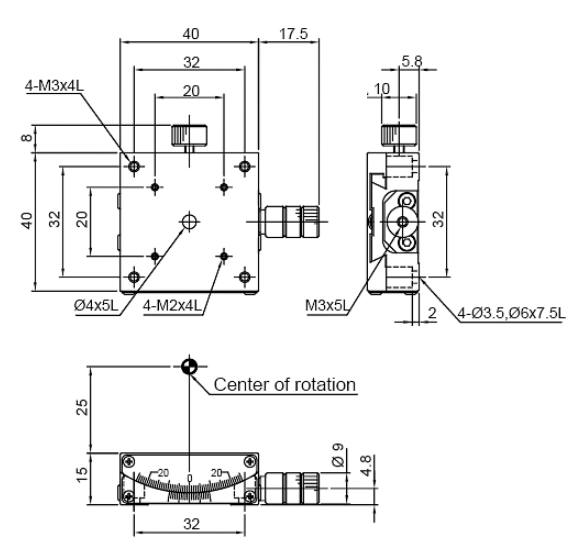

Mechanical Drawing

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MYG4-25CS

 Ordering Information

Part No. Description Amount
MXG4-25CS Manual Alpha-axis Goniometer Stage, Range of Travel  +/- 20 Click to Get a Quote
