Manual Alpha-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-axis Goniometer Stages

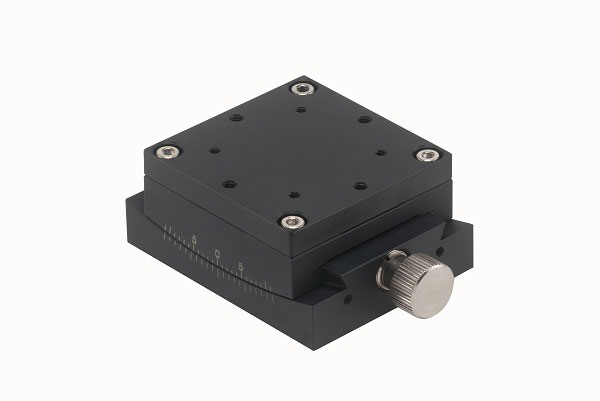

Manual Alpha-axis Goniometer Stage Picture


MXG6-70CE, manual goniometer is made of brass alloy with an elegant black fluororesin coating.

The bench size is 60 X 60 mm has a body weight of 0.7 kgf.

The drive mechanism is worm and worm gear. The worm gear ratios is
≈19'59'', per revolution of knob.

They provide +/-8
of rotation.

The maximum load of this goniometer table is 5.0 kgf.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 70 mm.

Specifications

Unit: mm
Model No. Table
Size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator
Height of
rotational center

 MXG6-70CE

60 by 60 α 5 0.7 Brass alloy Black Fluororesin +/-8 ≈19'59'' 1/indicator 70

 MXG6-96CE

60 by 60 α 5 0.7 Brass alloy Black Fluororesin +/-6 ≈15'21'' 1/indicator 86

 MXG6-122CE

60 by 60 α 5 0.7 Brass alloy Black Fluororesin +/-5 ≈12'27'' 1/indicator 122

Mechanical Drawing

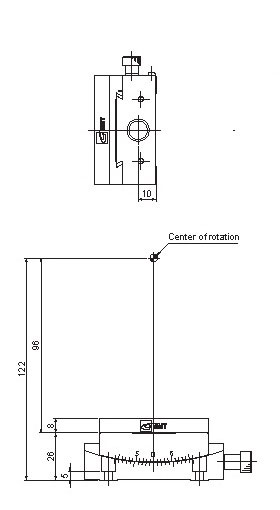

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MXG6-70CE

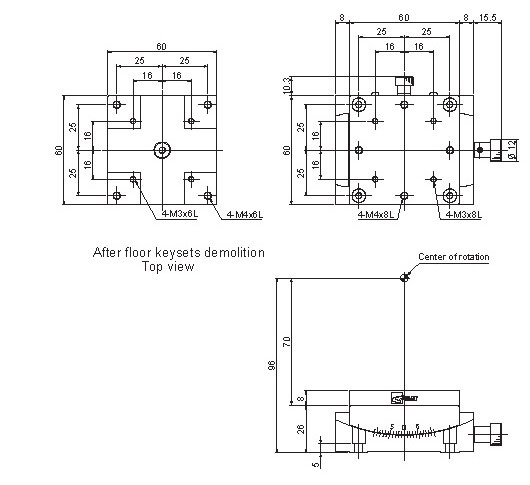

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MXG6-96CE

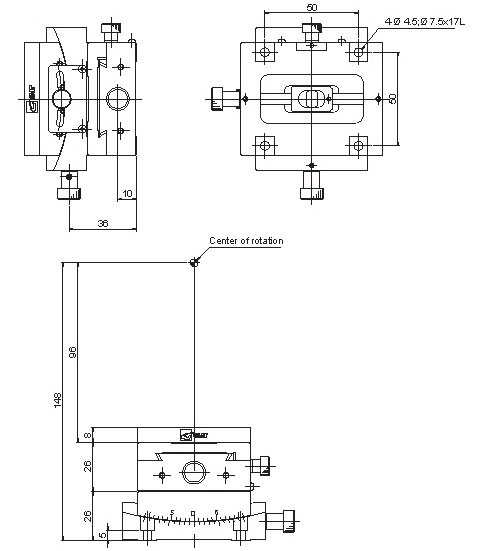

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MXG6-122CE

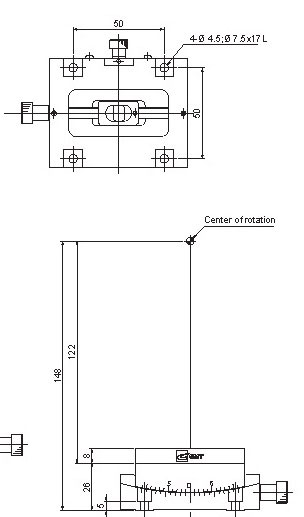

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MYG6-70CE

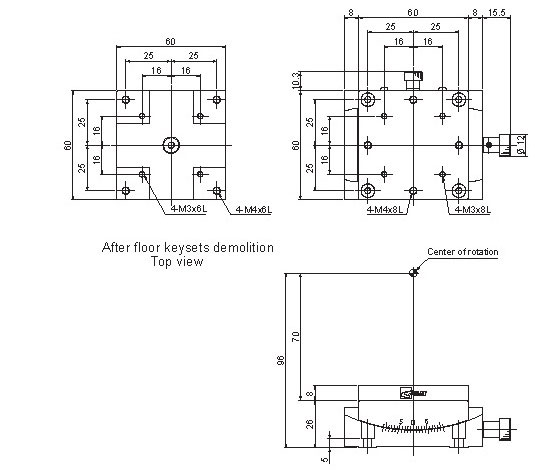

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MYG6-96CE

 Ordering Information

Part No. Description Amount
MXG6-70CE Manual Stage, Goniometer Stage, Alpha-axis Goniometer Stage, Range of Travel +/- 8 Click to Get a Quote
MXG6-96CE Manual Stage, Goniometer Stage, Alpha-axis Goniometer Stage, Range of Travel +/- 6 Click to Get a Quote
MXG6-122CE Manual Stage, Goniometer Stage, Alpha-axis Goniometer Stage, Range of Travel +/- 5 Click to Get a Quote
